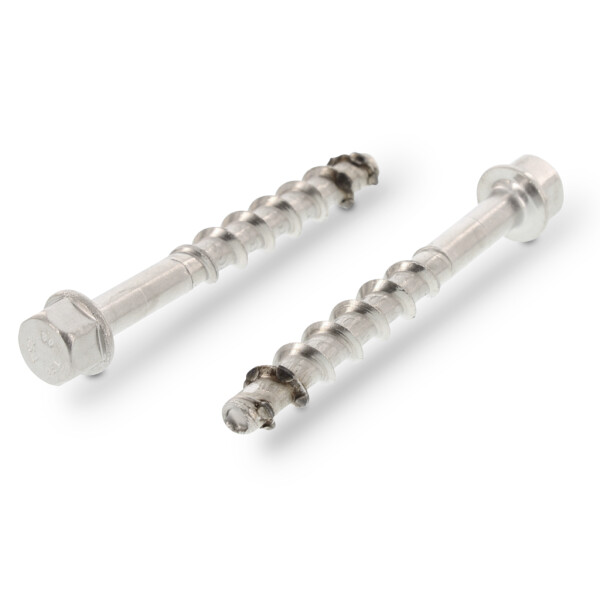

Art. 9001 A4 10X80/15 A/F 13
Hexagon head concrete bolts ETA 21/0425
Item number
90014010 80
Materials
A4
EAN/GTIN
4043377244512
Net weight per 100 pc.
4,300 kg
Packaging units:
50
Item number
90014010 80
Materials
A4
EAN/GTIN
4043377244512
Net weight per 100 pc.
4,300 kg
- Technical data
- Product information
- Product Information Files
- Catalog page

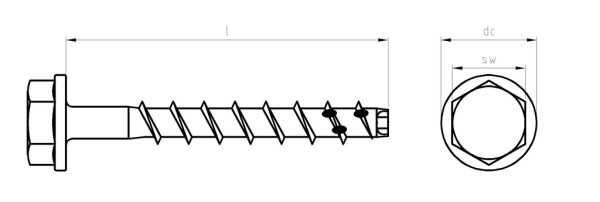

Technical data
| Diameter (d) | 10 mm |
| Total length (l) | 80 mm |
| strength class (Rm) | 700 N/mm² |
| Type of thread | Special thread |
| Head shape | Hexagonal head |
| Drive size | SW 13 |
| Drive shape (drive) | Outer hex |
Product information
Applications
Ideal for outdoor screw connections such as substructures, construction of rails, bridges or fences, signs, cabinets and solar systems.Area of use
Facade, Solar, Metal constructionFEATURES
- Tested for fire protection- Hex drive
- carbide-tipped
Share Art. 9001 A4 10X80/15 A/F 13
