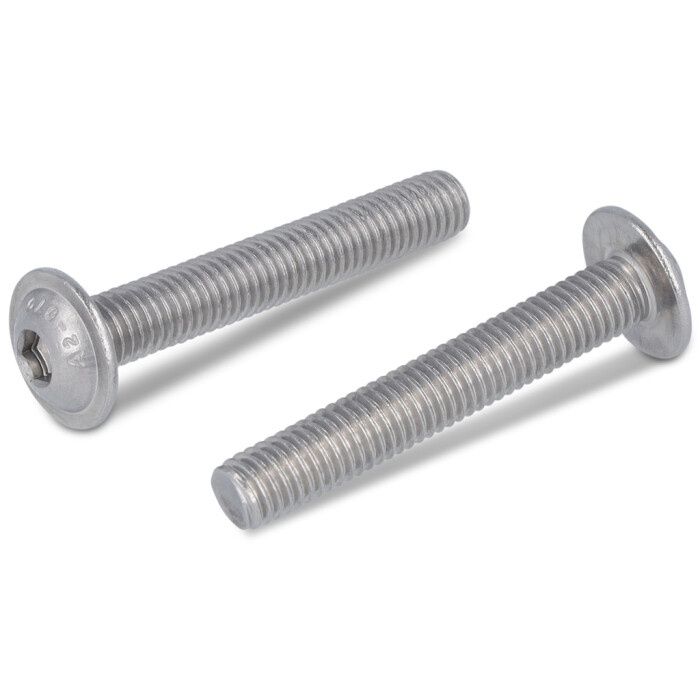

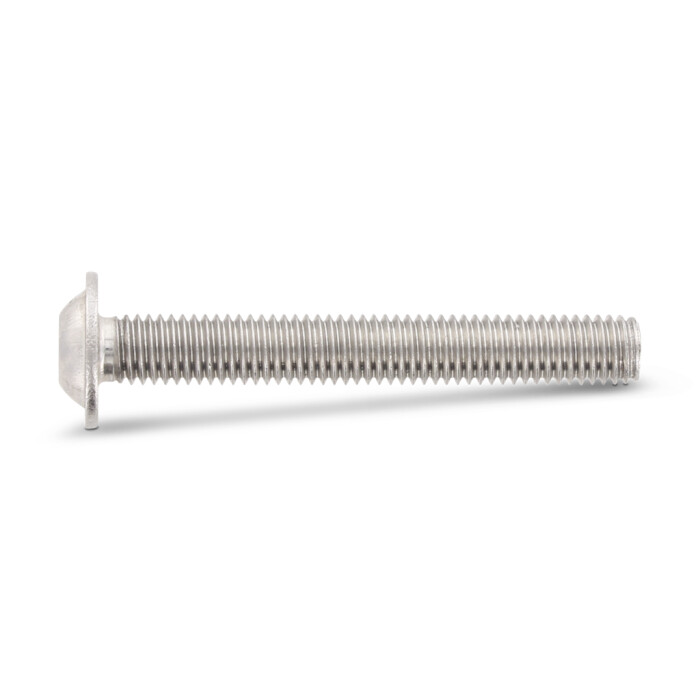

ISO 7380-2 A2 M 4X4/4

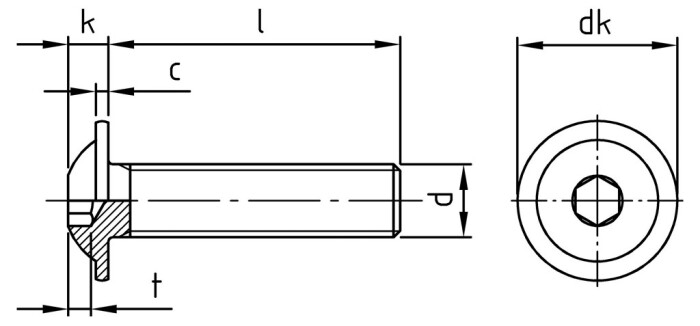

Technical data

Diameter (d)	4 mm
Total length (l)	4 mm
Type of thread	Metric

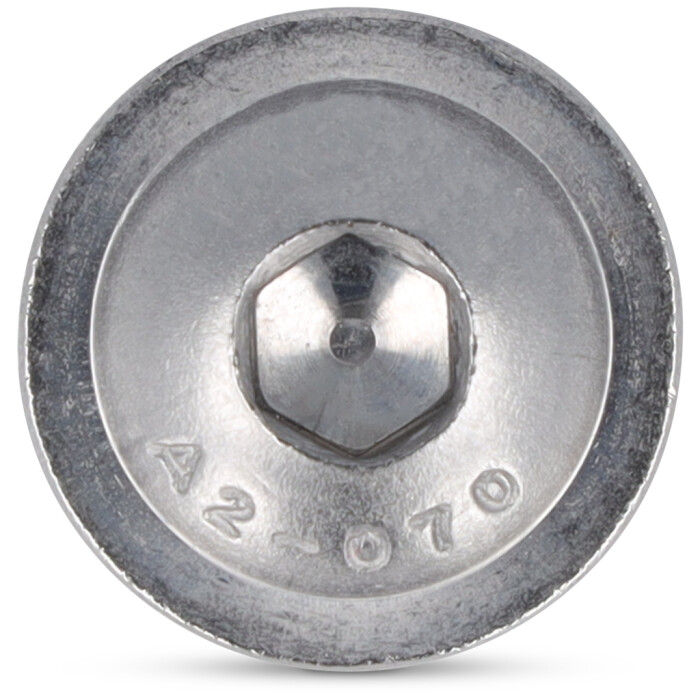

Head shape	pan head
Diameter of head (dk)	9,4 mm
Height of head (k)	2,2 mm
Measurement t (t)	1,3 mm
Drive size	SW 2,5
Drive shape (drive)	Hexagonal socket
strength class (Rm)	500 N/mm²

Product information

Applications

Sheet metal screw in the bathroom - and heating

Use in damp rooms and outdoor applications without significant levels of chlorides and Schwefeldioxyden

Area of use

Metal construction, Other applications

FEATURES

- "0" = reduced load capacity

Catalog page
